Darryl Oatridge, August 2022

Reports: Observing Intent

The review of a data transformations by an expert with similar credentials and subject knowledge as the data creator to validate the accuracy of the transformations

from ds_discovery import Transition, SyntheticBuilder
import pandas as pd

Transformation Intent

Intent is a core concept that transforms a set of intended actions relating directly to the components core task. In this instance we are using the Transitioning component that provides selection engineering of a provided dataset.

As a core concept, Intent and its Parameterization is captured in full giving it transparency and traceability to an expert observer. It provides direct editability of each Intent, with each Intent a separate concern. This means minimal rewrites, adaptability, clarity of change and reduced testing.

tr = Transition.from_env('demo_intent', has_contract=False)

Set File Source

Initially set the file source for the data of interest and runs the component.

## Set the file source location
data = 'https://www.openml.org/data/get_csv/16826755/phpMYEkMl.csv'
tr.set_source_uri(data)
tr.set_persist()
tr.set_description("Original Titanic Dataset")

Parameterised Intent

Through observations one identifies a number of selection engineering that needs to be done with the provided dataset. We are therefore looking to: - automatically clean the header to remove spaces and hidden characters in the header names. In addition note that ‘home.dest’ is seperated with a dot and best practice is to replace that with an underscore. - reinstate nulls that have been obfuscated with ‘question marks’ in order for us to clarify data quality and make better feature engineering decisions. - identity selected data columns of no interest and remove them. - apply logic that identifies potential categoricals and appropriately ‘type’ them. - insure the appropriate’typing’ of identified numeric features. - turn our target boolean into a 0 and 1 integer type for better feature engineering, observability and decision making.

Then run the pipeline to apply the Intent to the dataset.

df = tr.load_source_canonical()

df = tr.tools.auto_clean_header(df, rename_map={'home.dest': 'home_dest'}, intent_level='clean_header')
df = tr.tools.auto_reinstate_nulls(df, nulls_list=['?'], intent_level='reinstate_nulls')
df = tr.tools.to_remove(df, headers=['body', 'name', 'ticket', 'boat'], intent_level='to_remove')
df = tr.tools.auto_to_category(df, intent_level='auto_categorize')
df = tr.tools.to_numeric_type(df, headers=['age', 'fare'], intent_level='to_numeric')
df = tr.tools.to_int_type(df, headers='survived', intent_level='to_int')

tr.run_component_pipeline()

Report

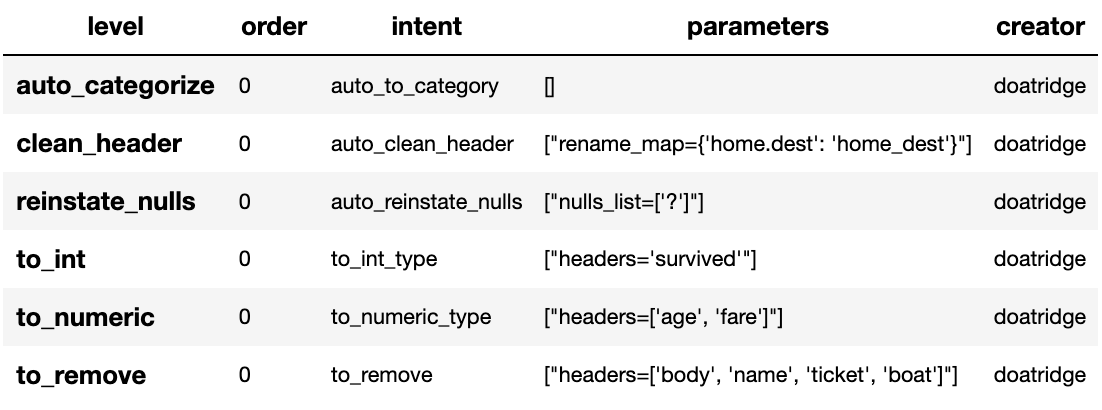

The Intent, once applied, can now be observed through the Intent’s report which outlines each activity which displays each line of the Intent. So it is worth observing that the Intent report is presented in alphabetical order and not the order in which it will run.

From the report one can clearly see each Intent and its Parameterization that can be modified by applying either a new Intent or a replacement of the already existing line of code.

tr.report_intent()

Intent Metadata

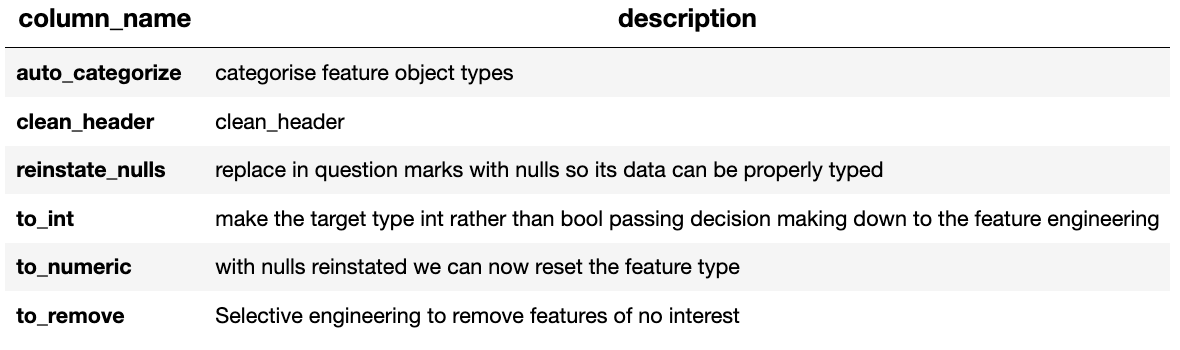

To enhance the readability and understanding of each intended action one can also add metadata to help explain ones thinking. This can be used in conjunction with the Intent report to provided a full picture of the actions that were taken and their changes and those actions changes to the outgoing dataset.

tr.add_intent_level_description(level='clean_header', text="clean_header")
tr.add_intent_level_description(level='reinstate_nulls', text="replace in question marks with nulls so its data can be properly typed")
tr.add_intent_level_description(level='to_remove', text="Selective engineering to remove features of no interest")
tr.add_intent_level_description(level='auto_categorize', text="categorise feature object types ")
tr.add_intent_level_description(level='to_numeric', text="with nulls reinstated we can now reset the feature type")
tr.add_intent_level_description(level='to_int', text="make the target type int rather than bool passing decision making down to the feature engineering")

tr.report_column_catalog()

Run Book

If not provided, the actions of the Intent will be aligned in the order given but if one wishes to change this order it has the ability to taylor the sequence using a Run Book. A Run Book provides the facility to define run order to insure actions are run appropriate to the Sequence they were intended. This is particulary useful when editing an existing Intent pipeline or where changes effect other actions.

Run books can also be used to create multiple pipelines whereby a sequence of Intent is created with multiple outcomes available for a particular dataset. This is an advanced topic and not covered here.

As usual the Run Book comes with its own reporting tool for easy visualisation.

tr.add_run_book(run_levels=['clean_header', 'to_remove', 'reinstate_nulls', 'auto_categorize', 'to_numeric', 'to_int'])

tr.report_run_book()
